Description

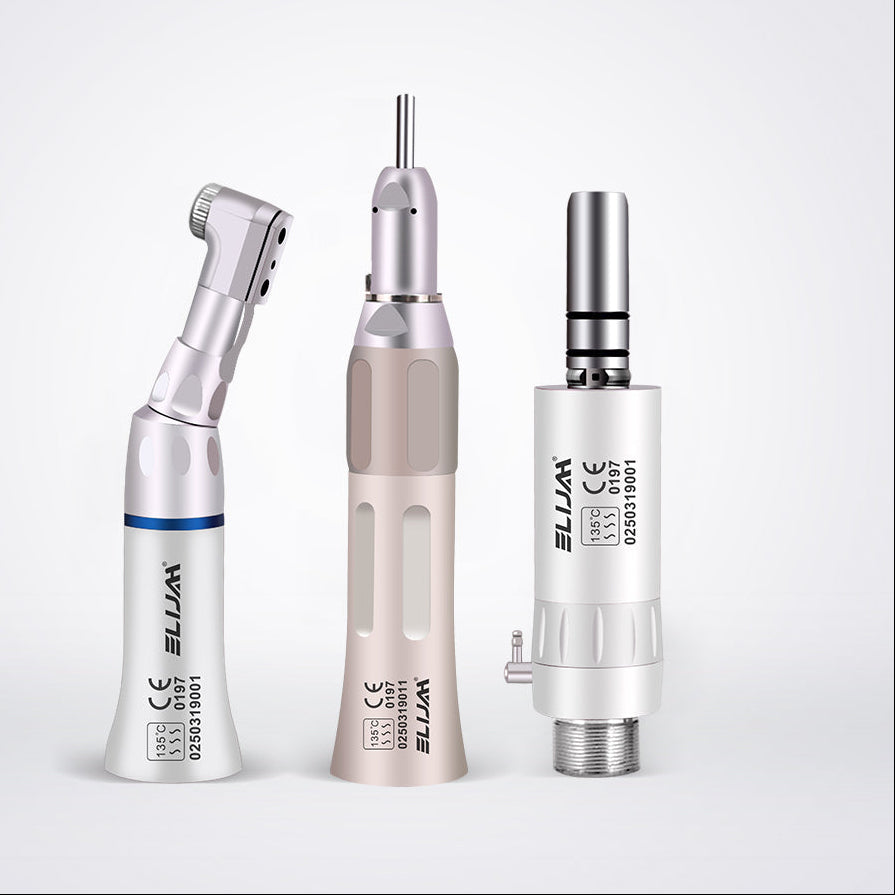

Professional 3-Piece Dental Low Speed Handpiece Kit
Complete low speed handpiece system including E-type air motor, straight nosecone, and contra angle. Compatible with 2/4 hole dental units and all E-type motors.

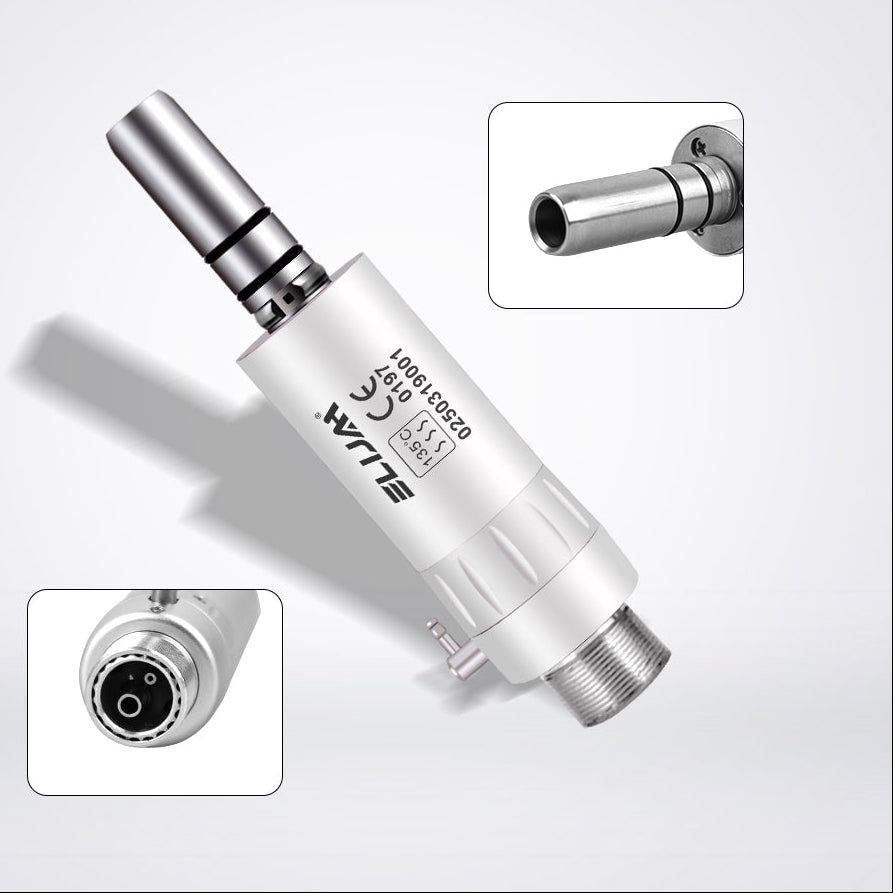

Air Motor Specifications:
- Speed: 22,000-27,000 RPM (adjustable, clockwise/anticlockwise)
- Working Pressure: 0.3 MPa (0.25 MPa at motor end)
- Bur Shank: 2.35mm standard
- Chuck Type: Turning latch
- Noise: ≤68 dB
- Air Consumption: ~56 L/min
- Ratio: 1:1
- Sterilization: 135°C autoclavable

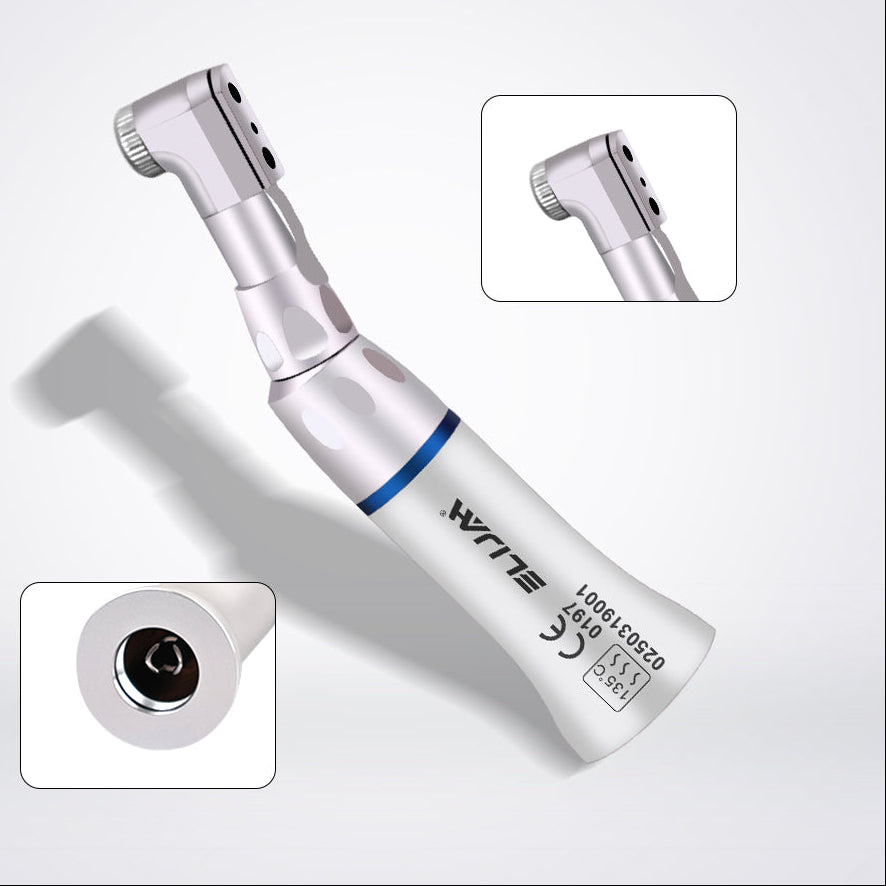

Contra Angle Specifications:
- Max Speed: 25,000 RPM
- Drive: 1:1 direct drive
- Connection: 4-hole
- Supply Air Pressure: 245-392 KPa (2.5-4 kgf/cm²)
- Max Speed: 20,000 RPM
Key Features:
- Compatible with 2/4 hole dental chairs and all E-type motors
- Adjustable clockwise and anticlockwise rotation
- 135°C autoclavable for complete sterilization
- Suitable for dental lab and clinical use

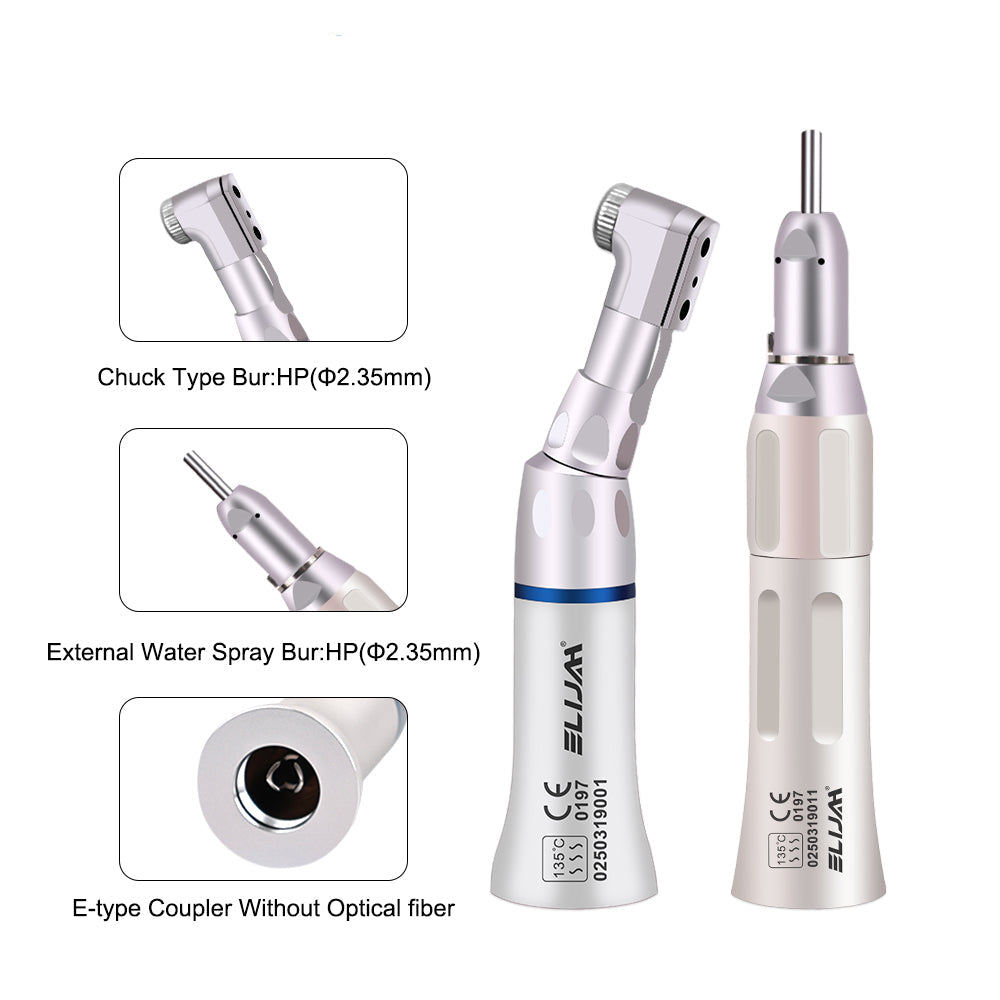

- Latch-type chuck for secure instrument fastening

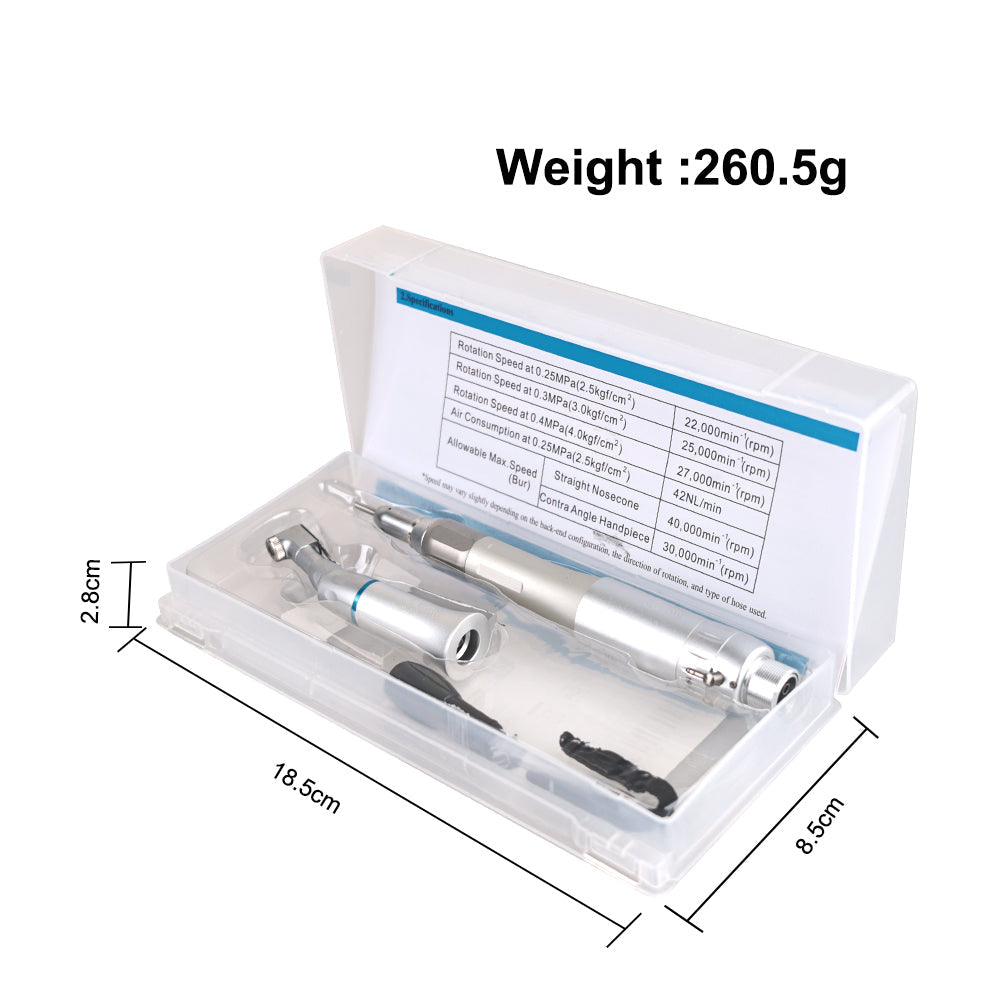

Package Includes:
- E-type Air Motor × 1

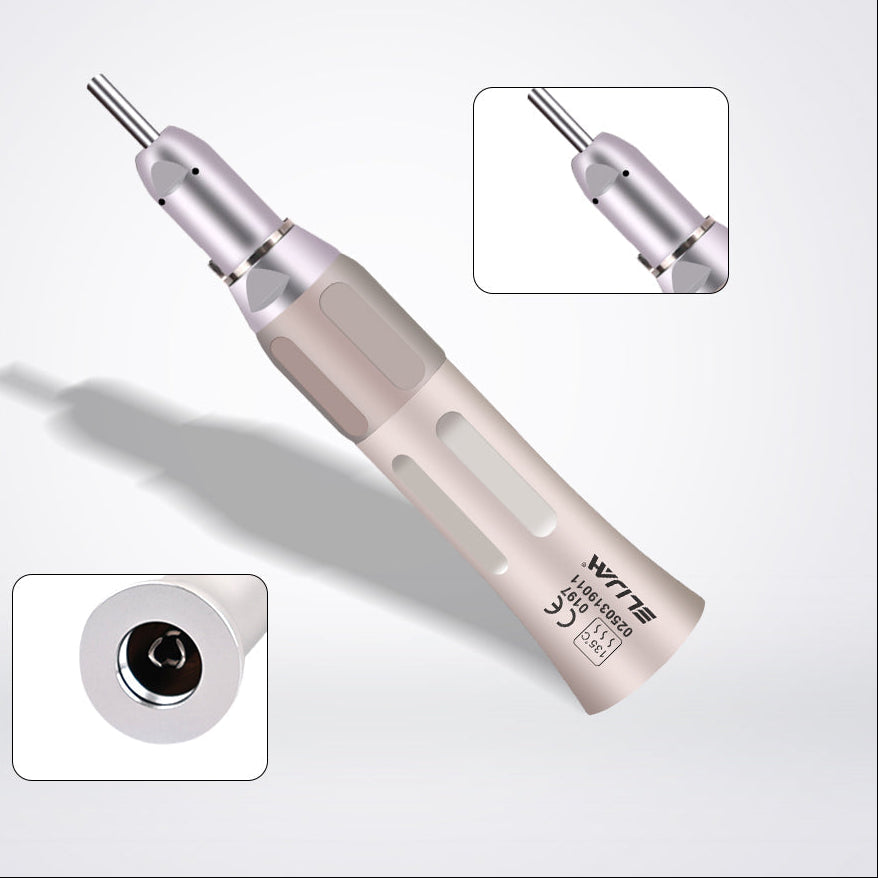

- Straight Nosecone × 1
- Contra Angle Handpiece × 1
