Description
The Dental High-Speed LED E-Generator Handpiece (Triple Spray) delivers exceptional cutting torque and shadow-free operative illumination without requiring expensive fiber-optic tubing or external light sources. Powered by an integrated micro-generator driven by dental unit airflow, it produces a consistent daylight-bright LED beam directly onto the preparation site.
Key Features
- Self-Powered LED E-Generator: Built-in micro air generator converts chair airflow into electrical energy, powering an ultra-bright LED light with zero external wiring or optic bulb replacements.
- Triple Water Spray Cooling: Three precision water ports deliver a uniform mist around the entire bur perimeter, preventing pulp overheating and clearing debris rapidly.
- Quiet, Long-Life Bearings: Premium precision bearings ensure smooth high-speed rotation (up to 350,000 RPM) with low vibration and quiet operation (≤63 dB).
- High-Retention Push-Button Chuck: Heavy-duty spindle chuck mechanism exerts over 2 kg of retention force, preventing bur slippage during high-load crown preparations.

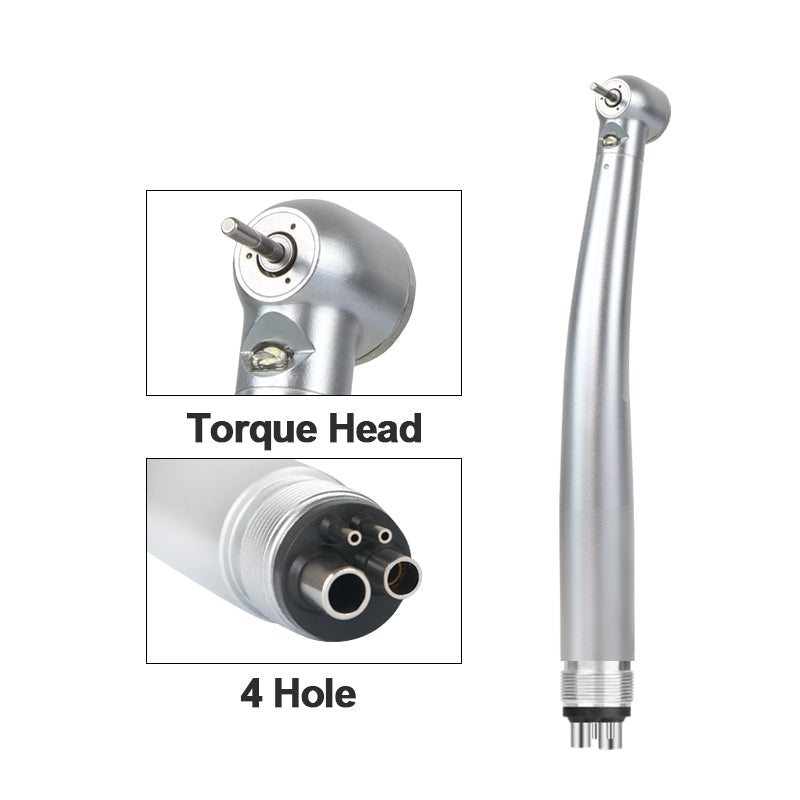

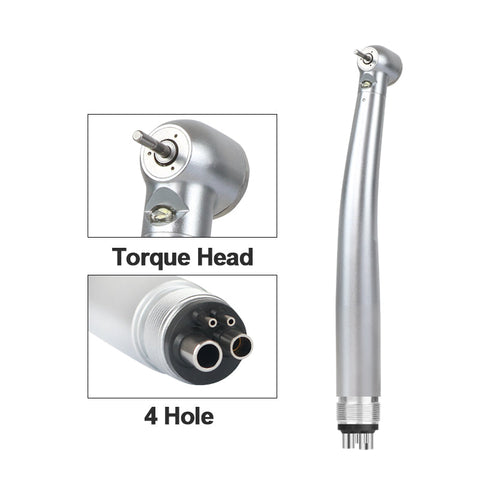

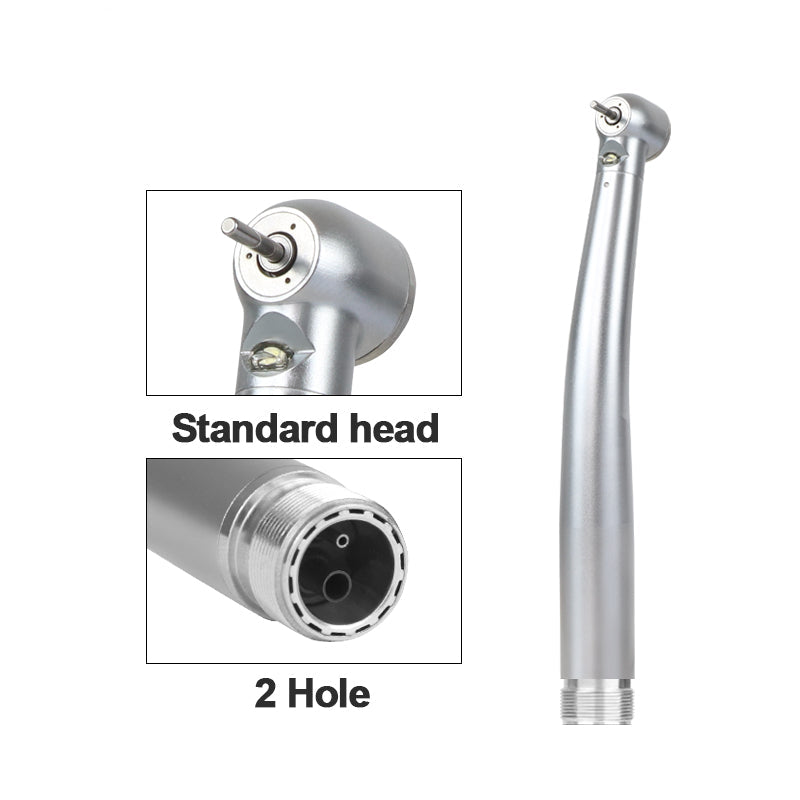

- Standard & Torque Head Options: Available in compact Standard Head for posterior access or Torque Head for maximum power in heavy restorative cutting.
- Durable All-Metal Body: Ergonomic stainless steel construction withstands repeated steam autoclaving up to 134°C (273°F) without optical clouding.
Product Specifications
- Chuck Mechanism: Push Button
- Illumination: Integrated LED with Air-Driven E-Generator
- Spray Type: Triple Water Spray (Independent Air & Water Lines)
- Operating Air Pressure: 0.25 – 0.30 MPa
- Rotation Speed: 280,000 – 350,000 RPM
- Noise Level: ≤ 63 dB
- Bur Compatibility: Standard FG Burs (Ø1.59 – 1.60 mm)

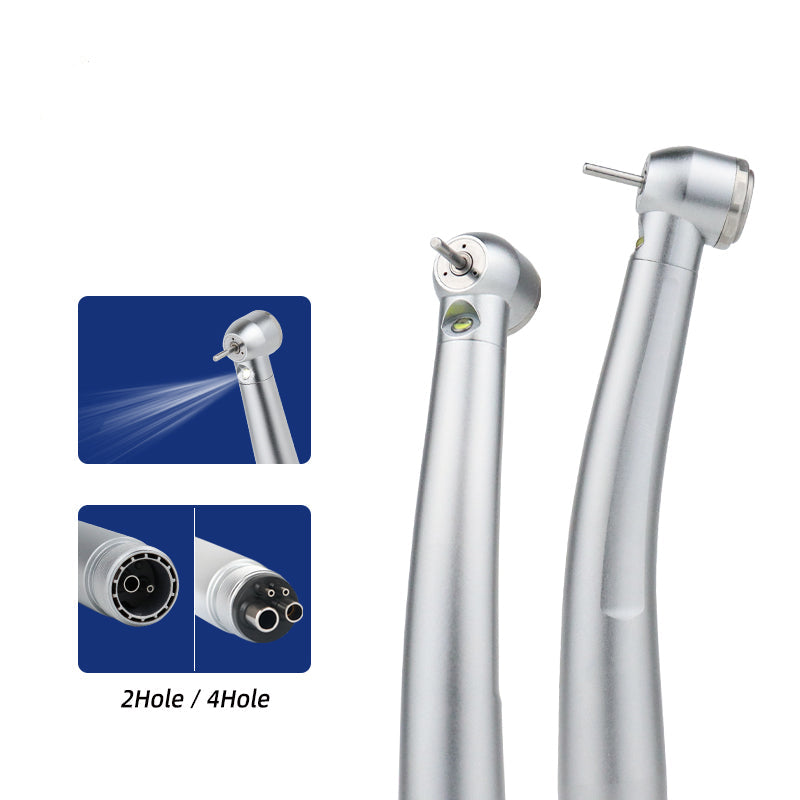

- Tubing Options: 2-Hole (Borden) / 4-Hole (Midwest)
- Head Configurations: Standard Head / High-Torque Head
- Sterilization: Autoclavable up to 134°C / 273°F
